使用 CentOS 7 和 PackStack 部署了 OpenStack 后，我们就可以着手创建第一个实例了。
1) 通过浏览器访问 https://<虚拟机地址>/dashboard/ 登录 OpenStack dashboard GUI。
用户名密码在
/root/keystonerc_admin和/root/keystonerc_demo中，接下来创建实例使用demo或者admin登录都可以，登录后我们可以通过 dashboard GUI 修改我们的登录密码。

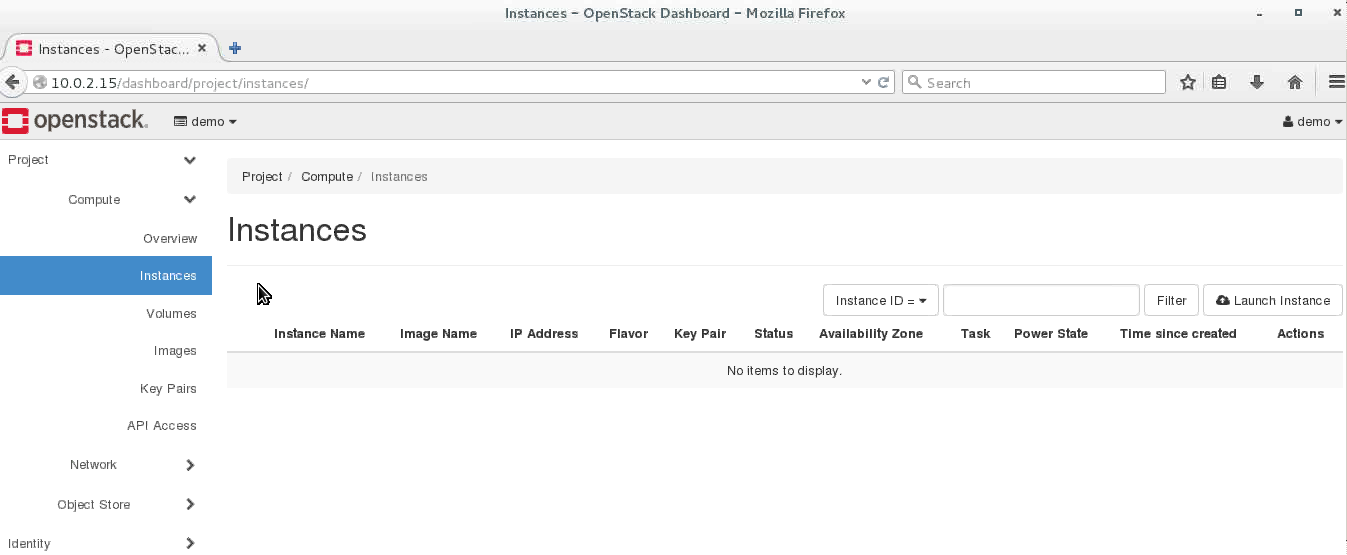

2) 进入 OpenStack dashboard GUI 后，点击 Project - Compute - Instances，显示界面如下：

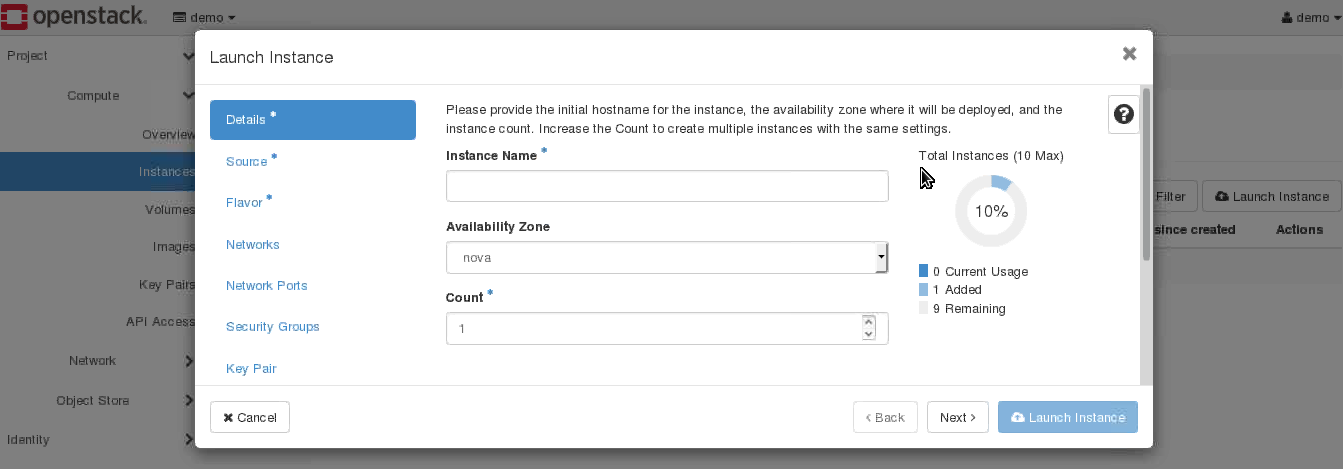

3) 点击 Lauch Instance，弹出如下窗口：
4) 配置实例信息，例如：
Details:
- Instance Name: test
- Availability Zone: nova
- Count: 1
Source:
- Select Boot Source: Image
OpenStack 自带一个 image 叫做 CirrOS(CirrOS is a Tiny OS that specializes in running on a cloud)，OpenStack 的开发基本都使用这个 image 来测试，因为它比较小，只有 10M 左右。镜像地址：https://launchpad.net/cirros/
CirrOS 可以使用用户名和密码登陆，也可以使用密钥登陆。用户名密码为：cirros/cubswin:)
— 分割线 —
若发现 OpenStack 中缺少可用的 image，可以下载 CirrOS image 文件进行添加。方法如下：
1.到 CirrOS 镜像网站下载镜像文件，例如 cirros-0.3.5-x86_64-disk.img
2.将下载的 .img 镜像文件上传到 CentOS/OpenStack，例如上传到根目录。
3.通过下面的命令注册 image（自定义修改其中的 <imageName>）：
openstack image create <imageName>
openstack image set <imageName>
openstack image create --disk-format qcow2 --container-format bare --public --file /cirros-0.3.5-x86_64-disk.img <imageName>
4.完成，通过 openstack image list 可以查看镜像列表：
[root@localhost ~(keystone_admin)]# openstack image list
+--------------------------------------+--------+--------+
| ID | Name | Status |
+--------------------------------------+--------+--------+
| eb94652f-4764-4ec9-baca-499e181eb91b | cirros | active |
+--------------------------------------+--------+--------+
[root@localhost ~(keystone_admin)]#
— 分割线 —
- Create New Volume: Yes
- Volume Size(GB): 1
- Delete Volume on Instance Delete: Yes

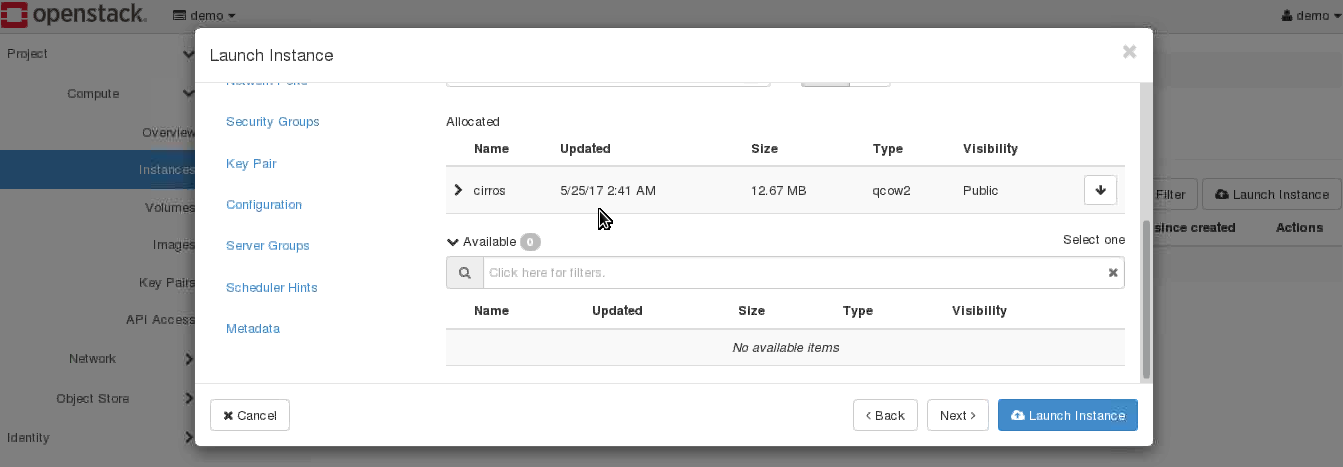

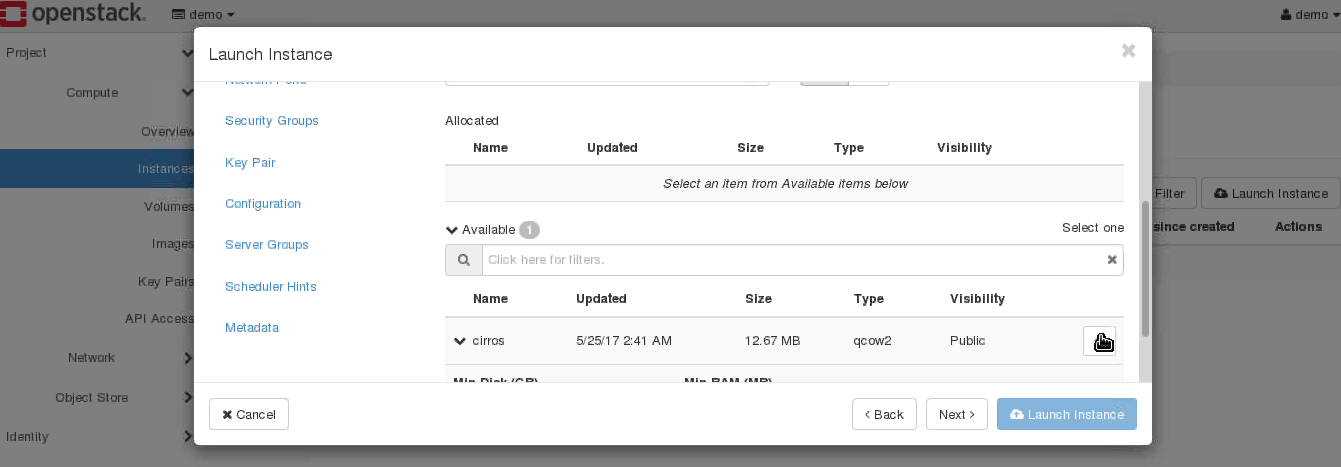

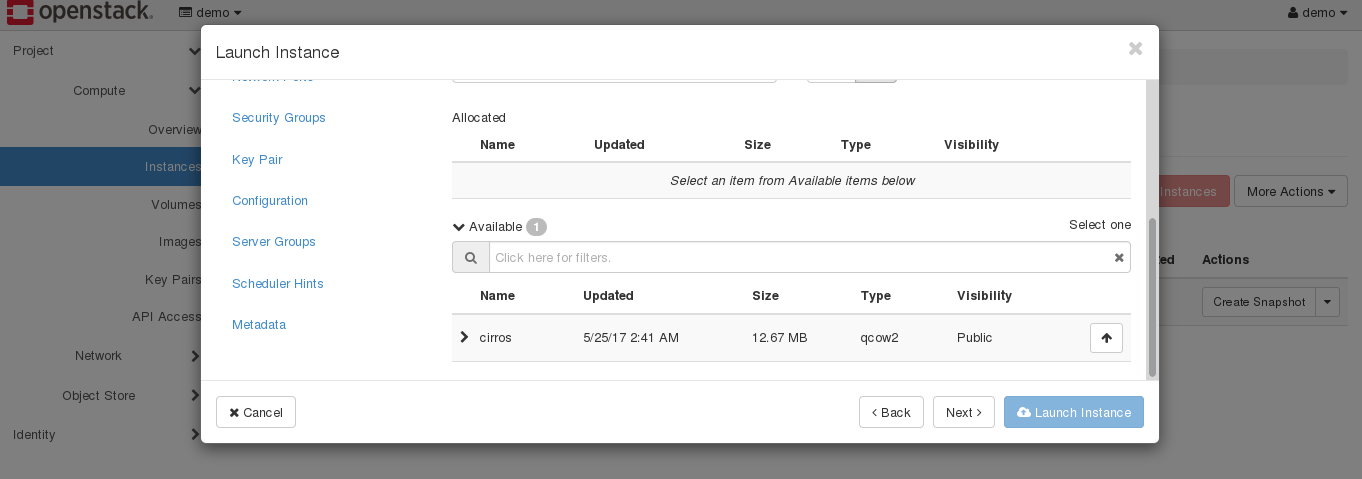

- 在 Available 选项下点击 cirros 的向上箭头，将其移到 Allocated 选项下面。如下图所示：

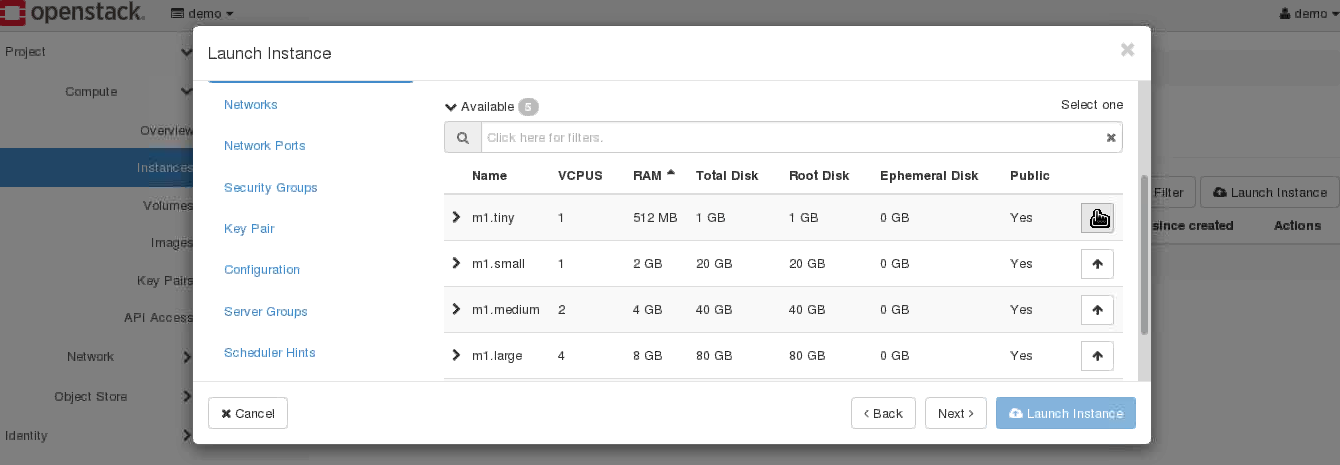

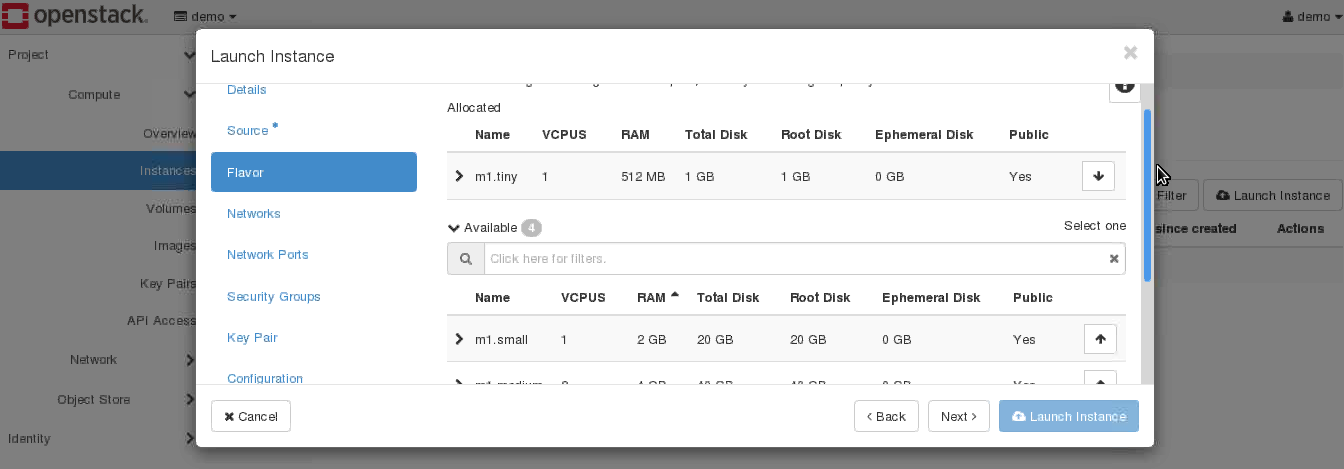

Flavor 可以选择最小的 m1.tiny 即可。如下图所示：
5) 其他配置信息可以保持默认。然后点击 Launch Instance，等待完成。
具体各个配置项的含义可以访问 OpenStack 查看：链接地址
视频演示：
视频演示（exe 文件）：点击下载
实例化过程中如遇报错，善查相关 log。log 路径：参考链接
至此，我们已经成功创建了第一个实例，接下来我们可以通过 terminal 的方式查看我们的 OpenStack 配置和实例信息，试着直观地理解 OpenStack 命令。
- 使用
nova list查看 instance 实例：
[root@localhost ~(keystone_demo)]# nova list
+--------------------------------------+------+--------+------------+-------------+------------------+
| ID | Name | Status | Task State | Power State | Networks |
+--------------------------------------+------+--------+------------+-------------+------------------+
| d91a9a0e-8a6c-4e4f-9f47-99f2d1da7938 | test | ACTIVE | - | Running | private=10.0.0.5 |
+--------------------------------------+------+--------+------------+-------------+------------------+
[root@localhost ~(keystone_demo)]#
执行 nova list 时如果遇到下面报错：
[root@openstack-server ~]# nova list
ERROR (CommandError): You must provide a username or user id via --os-username, --os-user-id, env[OS_USERNAME] or env[OS_USER_ID]
解决方法：使用 source <环境变量> 来获取 token，例如 source /root/keystonerc_admin 或者 source /root/keystonerc_demo。
如果在 source <环境变量> 后，执行 OpenStack 相关指令遇到如下报错：
[root@localhost ~(keystone_admin)]# openstack image show
The request you have made requires authentication. (HTTP 401) (Request-ID: req-adefb8e9-27d7-4aab-a9b4-a311f8952340)
[root@localhost ~(keystone_admin)]#
这应该是由于我们通过 dashboard GUI 修改了登录密码，但是 /root/keystonerc_admin 或者 /root/keystonerc_demo 中的 export OS_PASSWORD=<password> 没有修改导致的，将 <password> 改为正确的登录密码即可。
[root@localhost ~(keystone_demo)]# pwd
/root
[root@localhost ~(keystone_demo)]# source keystonerc_demo #根据实际情况，如果是登录 admin 账号创建的实例，则需要执行 source keystonerc_admin
[root@localhost ~(keystone_demo)]# nova list
+--------------------------------------+------+--------+------------+-------------+------------------+
| ID | Name | Status | Task State | Power State | Networks |
+--------------------------------------+------+--------+------------+-------------+------------------+
| d91a9a0e-8a6c-4e4f-9f47-99f2d1da7938 | test | ACTIVE | - | Running | private=10.0.0.5 |
+--------------------------------------+------+--------+------------+-------------+------------------+
[root@localhost ~(keystone_demo)]#
- 使用
openstack project list查看系统中的所有 tenant：
[root@localhost ~(keystone_admin)]# openstack project list
+----------------------------------+----------+
| ID | Name |
+----------------------------------+----------+
| 355c595975894e7d8caa9c3af1ad3cb7 | admin |
| 541cbc457e4544a593ea8a8ce0f87e88 | demo |
| 577fe7d4ac0346a1976335dc7400c65d | services |
+----------------------------------+----------+
[root@localhost ~(keystone_admin)]#
- 使用
openstack user list查看 OpenStack 中的所有 user 用户列表：
[root@localhost ~(keystone_admin)]# openstack user list
+----------------------------------+------------+
| ID | Name |
+----------------------------------+------------+
| 179a265ba71a4d00b602fb130e7fe65b | swift |
| 1f8b1698b91c42169437f856426fc0b1 | admin |
| 3668649a42d54bc3bd90e41a48f67e7f | demo |
| 525ea601affb42ba82c84fd1ac7f69f6 | nova |
| 62e05e7360e347dab374f7e6ecd9373e | neutron |
| 76923e150c0e45289ce2b949f9e8de91 | gnocchi |
| 9760566253204a7d8781c22be9ca81d6 | glance |
| d8959f7ec63e4572a016dac66d9908ae | aodh |
| e810efa8b27144ff83ec1a9d5788e562 | ceilometer |
| ea63efcf740e4b26847159da7b50c743 | placement |
| ebd7bc00e2824e2d8b2f45c4d9b737d8 | cinder |
+----------------------------------+------------+
[root@localhost ~(keystone_admin)]#
- 使用
openstack role list查看 OpenStack 中的所有 role 角色列表：
[root@localhost ~(keystone_admin)]# openstack role list
+----------------------------------+---------------+
| ID | Name |
+----------------------------------+---------------+
| 36b984c4e73d4150a1679c90c7a358c3 | admin |
| 4603d58a0f2b4a9cb6258eab5176c7b8 | ResellerAdmin |
| 9fe2ff9ee4384b1894a90878d3e92bab | _member_ |
| dda3c3492daf42a5ba3f7a832d7e0b78 | SwiftOperator |
+----------------------------------+---------------+
[root@localhost ~(keystone_admin)]#
- 使用
nova show <instance ID>查看 instance 详细信息：
[root@localhost ~(keystone_demo)]# nova show d91a9a0e-8a6c-4e4f-9f47-99f2d1da7938
+--------------------------------------+---------------------------------------------------------------------------------+
| Property | Value |
+--------------------------------------+---------------------------------------------------------------------------------+
| OS-DCF:diskConfig | AUTO |
| OS-EXT-AZ:availability_zone | nova |
| OS-EXT-STS:power_state | 1 |
| OS-EXT-STS:task_state | - |
| OS-EXT-STS:vm_state | active |
| OS-SRV-USG:launched_at | 2017-06-07T06:20:22.000000 |
| OS-SRV-USG:terminated_at | - |
| accessIPv4 | |
| accessIPv6 | |
| config_drive | |
| created | 2017-06-07T06:19:38Z |
| description | test |
| flavor | m1.tiny (1) |
| hostId | 619d9e1be3fc2dcb0f6a6e250e40e99d2e34ffc61cceff029f38fb3e |
| id | d91a9a0e-8a6c-4e4f-9f47-99f2d1da7938 |
| image | Attempt to boot from volume - no image supplied |
| key_name | - |
| locked | False |
| metadata | {} |
| name | test |
| os-extended-volumes:volumes_attached | [{"id": "b8901d5e-2634-499d-8d20-f1774942fc3f", "delete_on_termination": true}] |
| private network | 10.0.0.5 |
| progress | 0 |
| security_groups | default |
| status | ACTIVE |
| tags | [] |
| tenant_id | 541cbc457e4544a593ea8a8ce0f87e88 |
| updated | 2017-06-07T06:20:23Z |
| user_id | 3668649a42d54bc3bd90e41a48f67e7f |
+--------------------------------------+---------------------------------------------------------------------------------+
[root@localhost ~(keystone_demo)]#
- 使用
nova availability-zone-list或者openstack availability zone list查看 availability zone 列表：
[root@localhost ~(keystone_admin)]# nova availability-zone-list
+--------------------------+----------------------------------------+
| Name | Status |
+--------------------------+----------------------------------------+
| internal | available |
| |- localhost.localdomain | |
| | |- nova-conductor | enabled :-) 2017-06-07T09:11:59.000000 |
| | |- nova-consoleauth | enabled :-) 2017-06-07T09:12:04.000000 |
| | |- nova-scheduler | enabled :-) 2017-06-07T09:12:06.000000 |
| | |- nova-cert | enabled :-) 2017-06-07T09:11:58.000000 |
| nova | available |
| |- localhost.localdomain | |
| | |- nova-compute | enabled :-) 2017-06-07T09:12:05.000000 |
+--------------------------+----------------------------------------+
[root@localhost ~(keystone_admin)]# openstack availability zone list
+-----------+-------------+
| Zone Name | Zone Status |
+-----------+-------------+
| internal | available |
| nova | available |
| nova | available |
| nova | available |
| nova | available |
+-----------+-------------+
[root@localhost ~(keystone_admin)]#
- 使用
openstack image list或者glance image-list查看 image 列表：
[root@localhost ~(keystone_demo)]# openstack image list
+--------------------------------------+--------+--------+
| ID | Name | Status |
+--------------------------------------+--------+--------+
| eb94652f-4764-4ec9-baca-499e181eb91b | cirros | active |
+--------------------------------------+--------+--------+
[root@localhost ~(keystone_demo)]# glance image-list
+--------------------------------------+--------+
| ID | Name |
+--------------------------------------+--------+
| eb94652f-4764-4ec9-baca-499e181eb91b | cirros |
+--------------------------------------+--------+
[root@localhost ~(keystone_demo)]#
- 使用
openstack image show <image ID>或者glance image-show <image ID>查看 image 详细信息：
[root@localhost ~(keystone_demo)]# openstack image show eb94652f-4764-4ec9-baca-499e181eb91b
+------------------+------------------------------------------------------+
| Field | Value |
+------------------+------------------------------------------------------+
| checksum | ee1eca47dc88f4879d8a229cc70a07c6 |
| container_format | bare |
| created_at | 2017-05-24T18:41:41Z |
| disk_format | qcow2 |
| file | /v2/images/eb94652f-4764-4ec9-baca-499e181eb91b/file |
| id | eb94652f-4764-4ec9-baca-499e181eb91b |
| min_disk | 0 |
| min_ram | 0 |
| name | cirros |
| owner | 577fe7d4ac0346a1976335dc7400c65d |
| protected | False |
| schema | /v2/schemas/image |
| size | 13287936 |
| status | active |
| tags | |
| updated_at | 2017-05-24T18:41:41Z |
| virtual_size | None |
| visibility | public |
+------------------+------------------------------------------------------+
[root@localhost ~(keystone_demo)]# glance image-show eb94652f-4764-4ec9-baca-499e181eb91b
+------------------+--------------------------------------+
| Property | Value |
+------------------+--------------------------------------+
| checksum | ee1eca47dc88f4879d8a229cc70a07c6 |
| container_format | bare |
| created_at | 2017-05-24T18:41:41Z |
| disk_format | qcow2 |
| id | eb94652f-4764-4ec9-baca-499e181eb91b |
| min_disk | 0 |
| min_ram | 0 |
| name | cirros |
| owner | 577fe7d4ac0346a1976335dc7400c65d |
| protected | False |
| size | 13287936 |
| status | active |
| tags | [] |
| updated_at | 2017-05-24T18:41:41Z |
| virtual_size | None |
| visibility | public |
+------------------+--------------------------------------+
[root@localhost ~(keystone_demo)]#
- 使用
openstack flavor list/nova flavor-list查看 flavor 列表，openstack flavor show <flavor ID>/nova flavor-show <flavor ID>查看 flavor 详情：
[root@localhost ~(keystone_demo)]# openstack flavor list
+----+-----------+-------+------+-----------+-------+-----------+
| ID | Name | RAM | Disk | Ephemeral | VCPUs | Is Public |
+----+-----------+-------+------+-----------+-------+-----------+
| 1 | m1.tiny | 512 | 1 | 0 | 1 | True |
| 2 | m1.small | 2048 | 20 | 0 | 1 | True |
| 3 | m1.medium | 4096 | 40 | 0 | 2 | True |
| 4 | m1.large | 8192 | 80 | 0 | 4 | True |
| 5 | m1.xlarge | 16384 | 160 | 0 | 8 | True |
+----+-----------+-------+------+-----------+-------+-----------+
[root@localhost ~(keystone_demo)]# openstack flavor show 1
+----------------------------+---------+
| Field | Value |
+----------------------------+---------+
| OS-FLV-DISABLED:disabled | False |
| OS-FLV-EXT-DATA:ephemeral | 0 |
| access_project_ids | None |
| disk | 1 |
| id | 1 |
| name | m1.tiny |
| os-flavor-access:is_public | True |
| properties | |
| ram | 512 |
| rxtx_factor | 1.0 |
| swap | |
| vcpus | 1 |
+----------------------------+---------+
[root@localhost ~(keystone_demo)]#
- 使用
cinder list/openstack volume list查看当前 tenant 使用的 volume，使用cinder list --all-tenant/openstack volume list --all查看所有 tenant 使用的 volume：
[root@localhost ~(keystone_demo)]# cinder list
+--------------------------------------+--------+------+------+-------------+----------+--------------------------------------+
| ID | Status | Name | Size | Volume Type | Bootable | Attached to |
+--------------------------------------+--------+------+------+-------------+----------+--------------------------------------+
| b8901d5e-2634-499d-8d20-f1774942fc3f | in-use | | 1 | iscsi | true | d91a9a0e-8a6c-4e4f-9f47-99f2d1da7938 |
+--------------------------------------+--------+------+------+-------------+----------+--------------------------------------+
[root@localhost ~(keystone_demo)]# cinder list --all-tenant
+--------------------------------------+----------------------------------+--------+------+------+-------------+----------+--------------------------------------+
| ID | Tenant ID | Status | Name | Size | Volume Type | Bootable | Attached to |
+--------------------------------------+----------------------------------+--------+------+------+-------------+----------+--------------------------------------+
| b8901d5e-2634-499d-8d20-f1774942fc3f | 541cbc457e4544a593ea8a8ce0f87e88 | in-use | | 1 | iscsi | true | d91a9a0e-8a6c-4e4f-9f47-99f2d1da7938 |
+--------------------------------------+----------------------------------+--------+------+------+-------------+----------+--------------------------------------+
[root@localhost ~(keystone_demo)]#
[root@localhost ~(keystone_demo)]# openstack volume list
+--------------------------------------+--------------+--------+------+-------------------------------+
| ID | Display Name | Status | Size | Attached to |
+--------------------------------------+--------------+--------+------+-------------------------------+
| b8901d5e-2634-499d-8d20-f1774942fc3f | | in-use | 1 | Attached to test on /dev/vda |
+--------------------------------------+--------------+--------+------+-------------------------------+
[root@localhost ~(keystone_demo)]# openstack volume list --all
+--------------------------------------+--------------+--------+------+-------------------------------+
| ID | Display Name | Status | Size | Attached to |
+--------------------------------------+--------------+--------+------+-------------------------------+
| b8901d5e-2634-499d-8d20-f1774942fc3f | | in-use | 1 | Attached to test on /dev/vda |
+--------------------------------------+--------------+--------+------+-------------------------------+
[root@localhost ~(keystone_demo)]#
- 使用
openstack network list查看网络列表，使用openstack network show <network ID>查看网络详情：
[root@localhost ~(keystone_admin)]# openstack network list
+--------------------------------------+---------+--------------------------------------+
| ID | Name | Subnets |
+--------------------------------------+---------+--------------------------------------+
| 12f45958-2c36-48bb-ac47-9532ac2d07e4 | public | c954be37-19a7-4baa-9a57-09e5d9027610 |
| 9034943f-a6d3-4497-a1b0-c7863d8b36fb | private | ebd61f34-9c77-4c14-be5c-42e7e2667b7a |
+--------------------------------------+---------+--------------------------------------+
[root@localhost ~(keystone_admin)]# openstack network show 12f45958-2c36-48bb-ac47-9532ac2d07e4
+---------------------------+--------------------------------------+
| Field | Value |
+---------------------------+--------------------------------------+
| admin_state_up | UP |
| availability_zone_hints | |
| availability_zones | |
| created_at | 2017-05-24T18:44:26Z |
| description | |
| dns_domain | None |
| id | 12f45958-2c36-48bb-ac47-9532ac2d07e4 |
| ipv4_address_scope | None |
| ipv6_address_scope | None |
| is_default | False |
| mtu | 1500 |
| name | public |
| port_security_enabled | False |
| project_id | 355c595975894e7d8caa9c3af1ad3cb7 |
| provider:network_type | flat |
| provider:physical_network | extnet |
| provider:segmentation_id | None |
| qos_policy_id | None |
| revision_number | 5 |
| router:external | External |
| segments | None |
| shared | False |
| status | ACTIVE |
| subnets | c954be37-19a7-4baa-9a57-09e5d9027610 |
| updated_at | 2017-05-24T18:44:29Z |
+---------------------------+--------------------------------------+
- 使用
openstack subnet list查看网络列表，使用openstack subnet show <network ID>查看网络详情：
[root@localhost ~(keystone_admin)]# openstack subnet list
+--------------------------------------+----------------+--------------------------------------+---------------+
| ID | Name | Network | Subnet |
+--------------------------------------+----------------+--------------------------------------+---------------+
| c954be37-19a7-4baa-9a57-09e5d9027610 | public_subnet | 12f45958-2c36-48bb-ac47-9532ac2d07e4 | 172.24.4.0/24 |
| ebd61f34-9c77-4c14-be5c-42e7e2667b7a | private_subnet | 9034943f-a6d3-4497-a1b0-c7863d8b36fb | 10.0.0.0/24 |
+--------------------------------------+----------------+--------------------------------------+---------------+
[root@localhost ~(keystone_admin)]# openstack subnet show c954be37-19a7-4baa-9a57-09e5d9027610
+-------------------+--------------------------------------+
| Field | Value |
+-------------------+--------------------------------------+
| allocation_pools | 172.24.4.2-172.24.4.254 |
| cidr | 172.24.4.0/24 |
| created_at | 2017-05-24T18:44:29Z |
| description | |
| dns_nameservers | |
| enable_dhcp | False |
| gateway_ip | 172.24.4.1 |
| host_routes | |
| id | c954be37-19a7-4baa-9a57-09e5d9027610 |
| ip_version | 4 |
| ipv6_address_mode | None |
| ipv6_ra_mode | None |
| name | public_subnet |
| network_id | 12f45958-2c36-48bb-ac47-9532ac2d07e4 |
| project_id | 355c595975894e7d8caa9c3af1ad3cb7 |
| revision_number | 2 |
| segment_id | None |
| service_types | |
| subnetpool_id | None |
| updated_at | 2017-05-24T18:44:29Z |
+-------------------+--------------------------------------+
[root@localhost ~(keystone_admin)]#
[root@localhost ~(keystone_admin)]# openstack subnet show ebd61f34-9c77-4c14-be5c-42e7e2667b7a
+-------------------+--------------------------------------+
| Field | Value |
+-------------------+--------------------------------------+
| allocation_pools | 10.0.0.2-10.0.0.254 |
| cidr | 10.0.0.0/24 |
| created_at | 2017-05-24T18:44:33Z |
| description | |
| dns_nameservers | |
| enable_dhcp | True |
| gateway_ip | 10.0.0.1 |
| host_routes | |
| id | ebd61f34-9c77-4c14-be5c-42e7e2667b7a |
| ip_version | 4 |
| ipv6_address_mode | None |
| ipv6_ra_mode | None |
| name | private_subnet |
| network_id | 9034943f-a6d3-4497-a1b0-c7863d8b36fb |
| project_id | 541cbc457e4544a593ea8a8ce0f87e88 |
| revision_number | 2 |
| segment_id | None |
| service_types | |
| subnetpool_id | None |
| updated_at | 2017-05-24T18:44:33Z |
+-------------------+--------------------------------------+
[root@localhost ~(keystone_admin)]#
- 使用
openstack catalog list查看 API endpoints：
[root@localhost ~(keystone_admin)]# openstack catalog list
+------------+--------------+----------------------------------------------------------------------------+
| Name | Type | Endpoints |
+------------+--------------+----------------------------------------------------------------------------+
| placement | placement | RegionOne |
| | | internal: https://10.0.2.15:8778/placement |
| | | RegionOne |
| | | admin: https://10.0.2.15:8778/placement |
| | | RegionOne |
| | | public: https://10.0.2.15:8778/placement |
| | | |
| aodh | alarming | RegionOne |
| | | internal: https://10.0.2.15:8042 |
| | | RegionOne |
| | | admin: https://10.0.2.15:8042 |
| | | RegionOne |
| | | public: https://10.0.2.15:8042 |
| | | |
| cinderv2 | volumev2 | RegionOne |
| | | internal: https://10.0.2.15:8776/v2/355c595975894e7d8caa9c3af1ad3cb7 |
| | | RegionOne |
| | | admin: https://10.0.2.15:8776/v2/355c595975894e7d8caa9c3af1ad3cb7 |
| | | RegionOne |
| | | public: https://10.0.2.15:8776/v2/355c595975894e7d8caa9c3af1ad3cb7 |
| | | |
| glance | image | RegionOne |
| | | public: https://10.0.2.15:9292 |
| | | RegionOne |
| | | admin: https://10.0.2.15:9292 |
| | | RegionOne |
| | | internal: https://10.0.2.15:9292 |
| | | |
| gnocchi | metric | RegionOne |
| | | admin: https://10.0.2.15:8041 |
| | | RegionOne |
| | | public: https://10.0.2.15:8041 |
| | | RegionOne |
| | | internal: https://10.0.2.15:8041 |
| | | |
| nova | compute | RegionOne |
| | | admin: https://10.0.2.15:8774/v2.1/355c595975894e7d8caa9c3af1ad3cb7 |
| | | RegionOne |
| | | internal: https://10.0.2.15:8774/v2.1/355c595975894e7d8caa9c3af1ad3cb7 |
| | | RegionOne |
| | | public: https://10.0.2.15:8774/v2.1/355c595975894e7d8caa9c3af1ad3cb7 |
| | | |
| keystone | identity | RegionOne |
| | | public: https://10.0.2.15:5000/v3 |
| | | RegionOne |
| | | admin: https://10.0.2.15:35357/v3 |
| | | RegionOne |
| | | internal: https://10.0.2.15:5000/v3 |
| | | |
| cinder | volume | RegionOne |
| | | internal: https://10.0.2.15:8776/v1/355c595975894e7d8caa9c3af1ad3cb7 |
| | | RegionOne |
| | | public: https://10.0.2.15:8776/v1/355c595975894e7d8caa9c3af1ad3cb7 |
| | | RegionOne |
| | | admin: https://10.0.2.15:8776/v1/355c595975894e7d8caa9c3af1ad3cb7 |
| | | |
| cinderv3 | volumev3 | RegionOne |
| | | public: https://10.0.2.15:8776/v3/355c595975894e7d8caa9c3af1ad3cb7 |
| | | RegionOne |
| | | internal: https://10.0.2.15:8776/v3/355c595975894e7d8caa9c3af1ad3cb7 |
| | | RegionOne |
| | | admin: https://10.0.2.15:8776/v3/355c595975894e7d8caa9c3af1ad3cb7 |
| | | |
| ceilometer | metering | RegionOne |
| | | internal: https://10.0.2.15:8777 |
| | | RegionOne |
| | | admin: https://10.0.2.15:8777 |
| | | RegionOne |
| | | public: https://10.0.2.15:8777 |
| | | |
| neutron | network | RegionOne |
| | | public: https://10.0.2.15:9696 |
| | | RegionOne |
| | | internal: https://10.0.2.15:9696 |
| | | RegionOne |
| | | admin: https://10.0.2.15:9696 |
| | | |
| swift | object-store | RegionOne |
| | | internal: https://10.0.2.15:8080/v1/AUTH_355c595975894e7d8caa9c3af1ad3cb7 |
| | | RegionOne |
| | | admin: https://10.0.2.15:8080/v1/AUTH_355c595975894e7d8caa9c3af1ad3cb7 |
| | | RegionOne |
| | | public: https://10.0.2.15:8080/v1/AUTH_355c595975894e7d8caa9c3af1ad3cb7 |
| | | |
+------------+--------------+----------------------------------------------------------------------------+
[root@localhost ~(keystone_admin)]#
- EOF -
下一篇计划写一下通过命令行创建实例的方法。
更新历史：
2017/06/07 初稿发布
2017/06/16 更新 CirrOS 下载地址，添加注册 image 方法和修改登录密码相关内容
关于作者
最近更新：
